Swivel Hooks With Latches
No.: Swivel Hooks With LatchesDESCRIPTION
122
TABLE PARAMETER
Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
322C-Carbon Steel.
322A-Hook Alloy Steel; Bail: Carbon Steel.

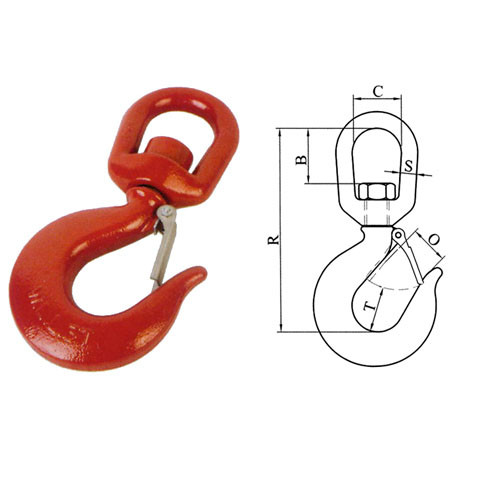

| PART. NO. | W.L.L. | DIMENSIONS | N.W. lbs | |||||||
| lbs | inch | |||||||||
| 322C | 322A | 322C | 322A | B | C | O | R | S | T | |
| RWLC0304 | RWLA1000 | 3/4 | 1 | 15/16 | 1-1/4 | 7/8 | 4-15/32 | 3/8 | 13/16 | 0.77 |
| RWLC1000 | RWLA1102 | 1 | 1-1/2 | 1-5/16 | 1-1/2 | 31/32 | 5-9/32 | 1/2 | 13/16 | 1.27 |
| RWLC1102 | RWLA2000 | 1-1/2 | 2 | 1-5/8 | 1-3/4 | 1 | 6-1/64 | 5/8 | 27/32 | 2.28 |
| RWLC2000 | RWLA3000 | 2 | 3 | 1-9/16 | 1-3/4 | 1-1/8 | 6-3/8 | 5/8 | 1-3/16 | 2.60 |
| RWLC3000 | RWLA5000 | 3 | 5 | 1-3/4 | 2 | 1-11/32 | 7-13/32 | 3/4 | 1-3/8 | 4.81 |
| RWLC5000 | RWLA7000 | 5 | 7 | 2-5/16 | 2-1/2 | 1-11/16 | 9-19/32 | 1 | 1-25/32 | 10.40 |
| RWLC7102 | RWLAT110 | 7-1/2 | 11 | 2-3/8 | 2-3/4 | 2-1/6 | 11-1/8 | 1-1/8 | 2-1/8 | 16.42 |
| RWLCT100 | RWLAT150 | 10 | 15 | 2-13/16 | 3-1/8 | 2-1/4 | 11-15/16 | 1-1/4 | 2-1/2 | 23.40 |
| RWLCT150 | RWLAT220 | 15 | 22 | 4 | 4 | 2-1/32 | 16-5/6 | 1-1/2 | 2-5/6 | 54.90 |
