Eye Grab Hooks
No.: Eye Grab HooksDESCRIPTION
67
TABLE PARAMETER
H-323 Forged Carbon Steel.
A-323 Forged Alloy Steel.
Quenched & Tempered.
Ultimate Load is 4 times the Working Load Limit.

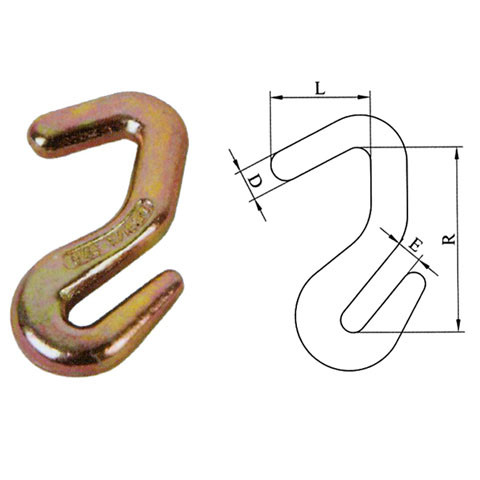

| PART. NO. | CHAIN SIZE inch | W.L.L. | DIMENSIONS | N.W. lbs | ||||
| lbs | inch | |||||||
| H-323 | A-323 | H-323 | A-323 | B | E | R | ||
| REGH0104 | REGA0104 | 1/4 | 2,600 | 3,500 | 0.50 | 0.34 | 1.97 | 0.28 |
| REGH0516 | REGA0516 | 5/16 | 3,900 | 4,700 | 0.56 | 0.44 | 2.25 | 0.45 |
| REGH0308 | REGA0308 | 3/8 | 5,400 | 7,100 | 0.66 | 0.50 | 2.56 | 0.79 |
| REGH0716 | REGA0716 | 7/16 | 7,200 | 8,750 | 0.75 | 0.56 | 2.94 | 1.19 |
| REGH0102 | REGA0102 | 1/2 | 9,200 | 12,000 | 0.88 | 0.66 | 3.38 | 1.80 |
| REGH0508 | REGA0508 | 5/8 | 13,000 | 15,800 | 1.06 | 0.78 | 4.11 | 3.30 |
| REGH0304 | REGA0304 | 3/4 | 20,200 | 24,700 | 1.38 | 0.94 | 5.16 | 6.00 |
